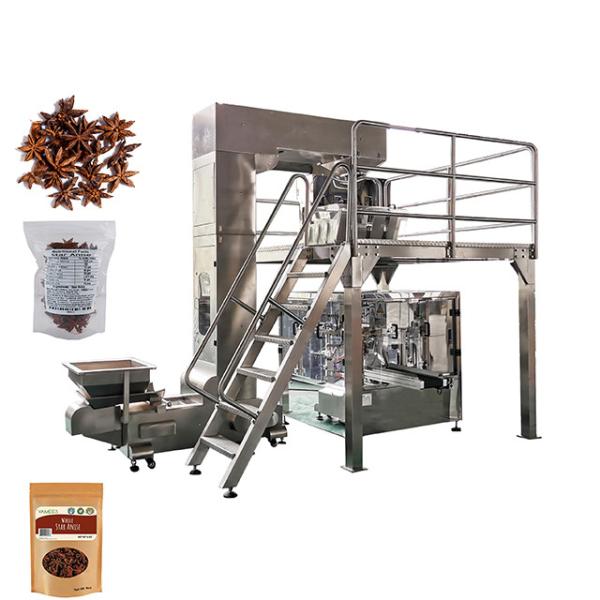

Rotary 8 Station bag Star Anise Premade Pouch Packing Machine With Linear Scale Weigher
Application:
premade pouch packaging machines is suitable for powder product, granule product, liquid product and paste product automatic packing. Rotary bag-given packing machine with different dosing(such as multi-head weigher, liquid filler, auger filler etc.),can be suitable for the automatic packing for granular, powder, liquid, paste etc.
Features
Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
The part where touch to the materials is made of stainless steel and according with the request of GMP.
Automatic Pre-made Pouch Rotary Packing Machine designed by Korea Equipped with a 10'' PLC touch screen with graphic intraface and an automatic lubricating system.
Washing down frame, parts above the table made by 304# stainless steel and alumina material.
The whole machine weights 1.8 ton, and its grippers can work at the 5 KGS bag loading.
Verify weight in weighing station, and compensate by servo filling system.
Vacuum pouch in sealing postion Spout at center of pouch
Technical Specifications:
| Working position | eight-working position |
| Pouch material | Laminated film PE,PP |
| Pouch pattern | stand-up&zipper pouch |
| Pouch size | W:100-210mm L:100-350mm |
| Filling Scope | 10-5000g( The screw attachment is to be changed) |
| Weight Accuracy | Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5% |
| Speed | 10-45pouches/min(The speed depends on the product status and flling weight)) |
| Voltage | 380V 3phase 50HZ/60HZ |
| Total power | 8.5KW |
| Compress air | 0.6m3/min(supply by user) |
