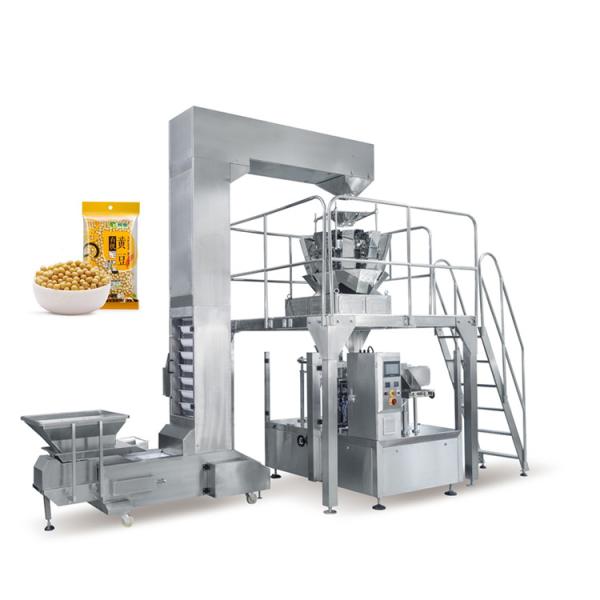

Multi-Function Packaging Machines Automatic Coffee Tea Packing Machine Pouch Filling Bag Granule Food Packaging Machine
Product Uses And Description:
Suitable For Automatic Packaging Powder Materials Like All Kinds Of Flour ,Washing Powder, Fine Sugar,Milk Powder,Glucose,Seasoning,Food Additive,Pesticide,And Chinese Medicine.
Imported Plc Control System, Simple-Operating, Visual Touch Screw. Servo Film Feeding System, Correct Register, Sealing And Cutting Positions Adopt Automatic Correction Device, High Automation. Intelligent Temperature Controller Is Used, Correct Temperature Control, Ensure Nice, Smooth Seal. Perfect Automatic Alarming Protective Function, Reduce The Consumption Up To The Lowest. When The Machine Is Combined With Metering Equipments, Full Packaging Process Including Automatic Feeding, Metering, Bag Filling, Date Printing And Automatic Counting Is Completed. Type Of Bag Making: According To Customer's Demand, The Machine Can Produce Pillow Bags, Punched Hanging Bags..
Specification
| Item | DXD-8200 | DXD-8250 | DXD-8300 |
| Packing Speed | Max 60 bags / min |
| Bag size | L100-300mm | L100-350mm | L150-450mm |
| W70-200mm | W130-250mm | W200-300mm |
| Bag Type | Pre-made bags, Stand up bag, Three or Four-side sealed bag, Special-shaped bag |
| Weighing Range | 10g~1kg | 10~2kg | 10g~3kg |
| Measurement Accuracy | ≤±0.5 ~ 1.0%,depend on the measurement equipment and materials |
| Maximem bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m³/min |
| Total power/ voltage | 1.5kw 380v 50/60hz | 1.8kw 380v 50/60hz | 2kw 380v 50/60hz |
| Air compressor | Not less than 1 CBM |
| Dimension | L1900*W1400*H1450mm | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1500kg |
Features:
1. Automatic Diagnosis and Alarm System
2. SUS 304
3. IP65 & Dustproof
4. No Manual Work Required
5. Stable Production
6. Speed Adjustment
7. Wide Range of Packing
8. Touch Screen with PLC
Our Services:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and
Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
FAQ
For more information's, please feel free to contact with us by mail or telephone call.
