For products including containers, bottles,blister packs, pouches, sachets or tube, and many other high-output application, high speed cartoners will deliver the needed performance and reliability while keeping the project within budget.
Main Feature
* The first domestic carton feeding system has realized the function of adding new cartons without stopping the machine.
* This equipment can be connected to the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realizes automatic work. The back end can be connected with labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.
* Optional functions available: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc. This machine can add auto feeding device molds and printer
Application:
1. There is no need to change the mold to change the specifications, it can be realized by only adjusting;
2. It adopts automatic shutdown and main drive motor overload protection device if the items are not in place in the box, which is safer and more reliable;
3. According to customer requirements, a flip-up safety protective cover can be used, which is easy to operate and beautiful in appearance. It can realize linkage production with aluminum-plastic packaging machine, pillow packaging machine, three-dimensional packaging machine, bottling line, filling machine, labeling machine, inkjet printer, online weighing instrument, other production lines and other equipment;
4. Various automatic feeders and boxing systems can be designed according to the requirements of the packaging;
Main Technical Data:
| Model | ZH-50 |
| Packing speed | 30-60 Cartons/min |
| Carton size range | L(40-100)mm×W(12-60)mm×H(12-60)mm |
| Carton gram requirements | 250-350g/m3 |
| Motor power | 1.5KW |
| Power supply | Three phase 380V 50Hz |
| Machine noise | ≤80dB |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 150L/min |
| Dimension | 1100×1500×1900 mm |
| Weight | 250Kg |
Product Tags:
|
|

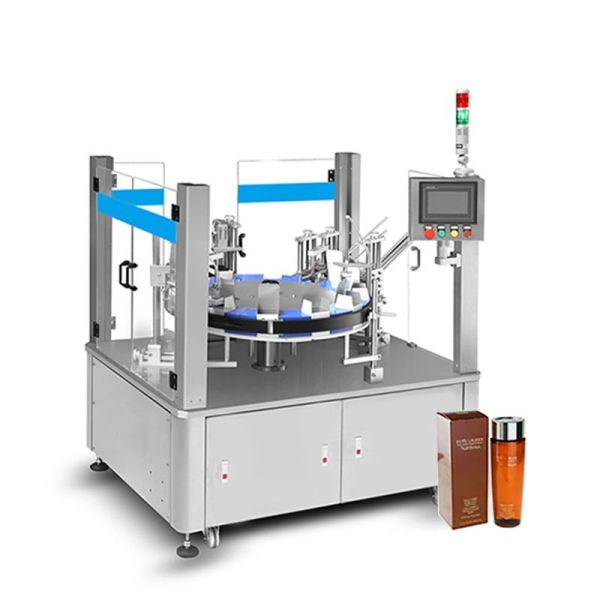

Vertical Automatic Shutdown Carton Packing Machine 50cartons/Min Images
|
